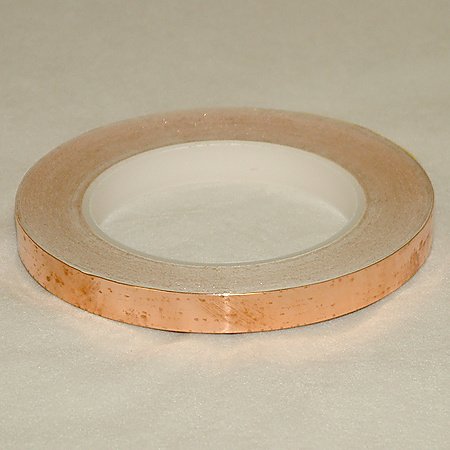

| JVCC CFL-5CA Copper Foil Tape (Conductive Adhesive): 1/2 in. x 36 yds. (Copper) |
| Brand: J.V. Converting
Category: Home Improvement
Buy New: $28.37
as of 2/8/2012 13:21 CST details
Seller: FindTape
Sales Rank: 19,863
Color: Copper
Media: Misc.
Size: 1/2 in. x 36 yds. (12.7mm wide)
Shipping Weight (lbs): 0.5
Dimensions (in): 4.7 x 4.6 x 0.4
MPN: CFL-5CA/COP0536
UPC: 401000021154
EAN: 0401000021154
ASIN: B000WQ5SZY
Shipping: Eligible for FREE Super Saver Shipping
Availability: Usually ships in 24 hours
| |
| Features:
| • | Adhesive: conductive acrylic | | • | Backing/Carrier: copper foil | | • | Release Liner: 60# paper | | • | Certifications: File #130121, UL510, Section 4, MIL-T-47012 | | • | Thickness: 3 mils (without liner) 1.6 mils (adhesive) 1.4 mils (carrier/backing) |
|
| Similar Items:
| |
| Editorial Reviews:
Product Description
JVCC CFL-5CA Copper Foil Tape is a 1 oz. rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres to provide a very low rate of electrical resistance through the tape (0.003 Ohms/square inch). Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics). Its aggressive acrylic adhesive system creates a superior bond. Annealed and non-tarnishing, bright copper color. Flammability: File #130121, UL 510, Section 4. Can also be used for decorative arts & crafts projects. Widths shown in dropdown are in inches. NOTES: Sizes shipped will typically be the tape industry standard metric-cut sizes, i.e. 24mm for each 1 inch of nominal tape width ordered (rolls are approximately 5% narrower than the nominal size). This product's actual size is 12.7mm wide. This tape is typically cut to width from log rolls so most sizes ship on a plain white core.
|
| |
|
|
|
